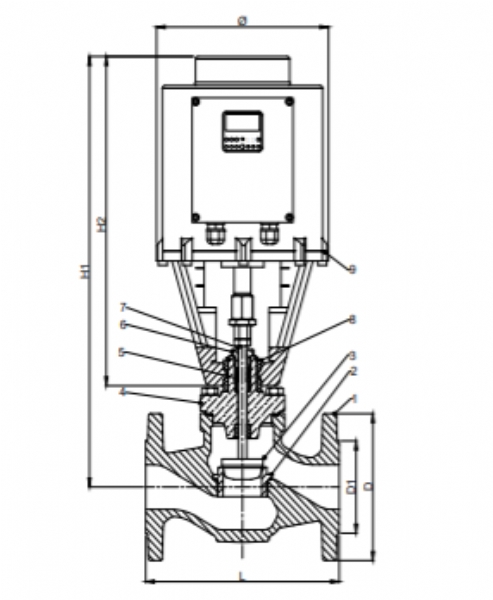

| 1 | GÖVDE / BODY | EN-GJL-250, EN-GJS-400-18-LT, 1.0619, 1.4408 |
| 2 | SİT / SEAT | 1.4006, 1.4305, 1.4404 |
| 3 | KLAPE / PLUG | PEEK (1.4305, 1.4404) - METAL-METAL (1.4305, 1.4404) |
| 4 | ÜST FLANŞ / TOP FLANGE | EN-GJS-400-18-LT, 1.0619, 1.4408 |
| 5 | CONTA / GASKET | PTFE |
| 6 | KILAVUZ KOVANI / GUIDE SLEEVE | 1.4104 |
| 7 | MİL / SHAFT | 1.4305, 1.4404 |
| 8 | ÜST FLANŞ BİLEZİĞİ / UPPER FLANGE RING | S235JR |
| 9 | MOTOR / MOTOR | ERD 6224 |
| TEKNİK BİLGİLER / TECHNICAL INFORMATION | ELEKTRİK AKTÜATÖR TEKNİK BİLGİLER / ELECTRIC ACTUATOR TECHNICAL INFORMATION | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ÖLÇÜ SIZE | PN | L mm | D mm | D1 mm | H1 mm | H2 mm | KV/s | Ø mm | Kg | N | FEEDBACK | INPUT | ||
| DN15 | 16 | 130 | 95 | 45 | 456 | 372 | 4 | 205 | 15,80 | 24V DC | 1000 / 3000 / 5000 | + | 0-10 V/4-20 mA/Local | |
| DN20 | 16 | 150 | 105 | 58 | 456 | 372 | 6,3 | 205 | 16,00 | 24V AC | 1000 / 3000 / 5000 | + | 0-10 V/4-20 mA/Local | |
| DN25 | 16 | 160 | 115 | 68 | 456 | 372 | 10 | 205 | 16,45 | 220V AC | 1000 / 3000 / 5000 | + | 0-10 V/4-20 mA/Local | |
| DN32 | 16 | 180 | 140 | 78 | 483,5 | 372 | 16 | 205 | 22,65 | |||||
| DN40 | 16 | 200 | 150 | 88 | 483,5 | 372 | 25 | 205 | 23,45 | |||||
| DN50 | 16 | 230 | 165 | 102 | 483,5 | 372 | 40 | 205 | 24,80 | |||||
| DN65 | 16 | 290 | 185 | 122 | 510 | 372 | 63 | 205 | 38,00 | |||||
| DN80 | 16 | 310 | 200 | 138 | 510 | 372 | 80 | 205 | 40,60 | |||||
| DN100 | 16 | 350 | 220 | 158 | 587 | 415 | 160 | 205 | 58,90 | |||||
| DN125 | 16 | 400 | 250 | 188 | 587 | 415 | 200 | 205 | - | |||||
| DN150 | 16 | 480 | 285 | 212 | 632 | 415 | 260 | 205 | - | |||||
| DN200 | 16 | 600 | 340 | 268 | 682 | 415 | 360 | 205 | - | |||||
