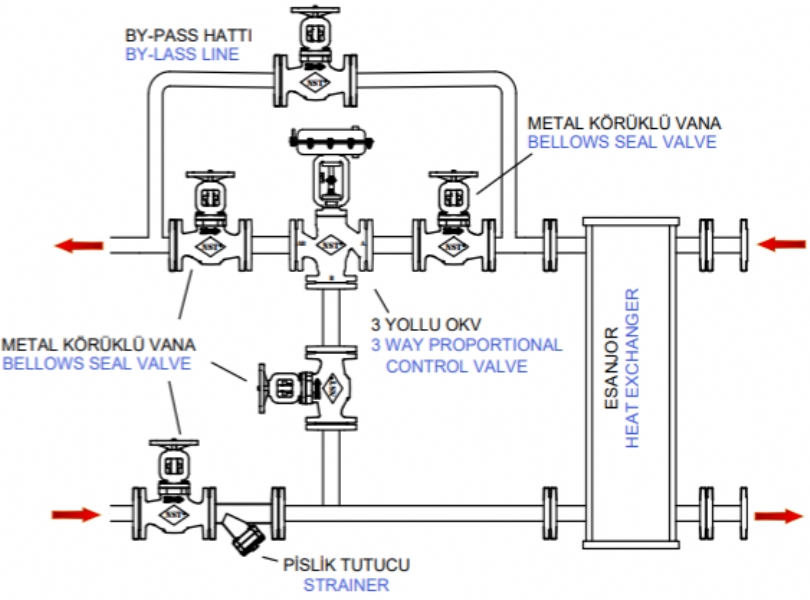

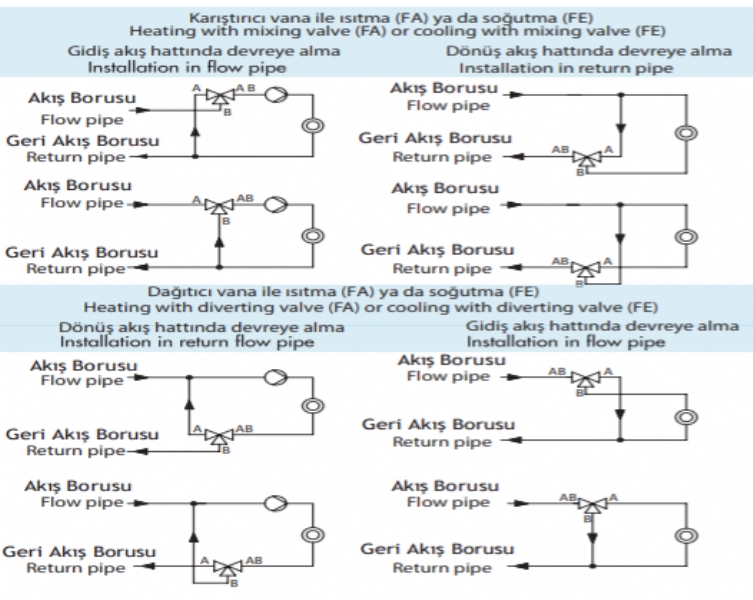

| 1 | GÖVDE / BODY | EN-GJL-250, EN-GJS-400-18-LT, 1.0619, 1.4408 |
| 2 | SİT / SEAT | 1.4006, 1.4305, 1.4404 |
| 3 | KLAPE / PLUG | 1.4305, PEEK |
| 4 | ÜST FLANŞ / TOP FLANGE | EN-GJS-400-18-LT, 1.0619, 1.4408 |
| 5 | CONTA / GASKET | PTFE |
| 6 | KLAVUZ KOVANI / GUIDE GLAND | 1.4104 |
| 7 | MİL / SHAFT | 1.4305, 1.4404 |
| 8 | LATERNA / YOKE | EN-GJS-400-18-LT, 1.0619, 1.4408 |
| 9 | AKTÜATÖR / ACTUATOR | ERD 6224 |
| TEKNİK BİLGİLER / TECHNICAL INFORMATION | TAHRİK ÜNİTESİ TEKNİK BİLGİLER / DRIVE UNIT TECHNICAL INFORMATION | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ÖLÇÜ SIZE | PN | L mm | D mm | D1 mm | H1 mm | H2 mm | H3 mm | KV/s | Ø mm | Kg | ÖLÇÜ SIZE | BESLEME MAKS FEED MAX | AYAR SAHASI / SETTING RANGE | Ø (mm) | H2 (mm) | |
| DN15 | 16 | 130 | 95 | 45 | 70 | 268 | 92 | 4 | 240 | 12,57 | 235 cm² | 6 bar | 0,2 - 1,0 0,4 - 2,0 0,6 - 3,0 0,8 - 2,4 | 240 | 92 | |
| DN20 | 16 | 150 | 105 | 58 | 80 | 268 | 92 | 6,3 | 240 | 14,00 | 345 cm² | 6 bar | 0,2 - 1,0 0,4 - 2,0 0,6 - 3,0 0,8 - 2,4 1,4 - 2,3 2,1 - 3,3 | 270 | 115 | |
| DN25 | 16 | 160 | 115 | 68 | 85 | 268 | 92 | 10 | 240 | 14,75 | 685 cm² | 6 bar | 0,2 - 1,0 0,4 - 2,0 0,6 - 3,0 0,8 - 2,4 1,4 - 2,3 2,1 - 3,3 | 380 | 166 | |
| DN32 | 16 | 180 | 140 | 78 | 100 | 290 | 115 | 16 | 270 | 25,15 | ||||||
| DN40 | 16 | 200 | 150 | 88 | 105 | 290 | 115 | 25 | 270 | 26,35 | ||||||
| DN50 | 16 | 230 | 165 | 102 | 120 | 290 | 115 | 40 | 270 | 33,15 | ||||||
| DN65 | 16 | 290 | 185 | 122 | 130 | 315 | 115 | 63 | 270 | 39,30 | ||||||
| DN80 | 16 | 310 | 200 | 138 | 140 | 315 | 115 | 80 | 270 | 44,30 | ||||||
| DN100 | 16 | 350 | 220 | 158 | 150 | 393 | 166 | 160 | 380 | 79,50 | ||||||
| DN125 | 16 | 400 | 250 | 188 | - | - | - | - | - | - | ||||||
| DN150 | 16 | 480 | 285 | 212 | - | - | - | - | - | - | ||||||
| DN200 | 16 | 600 | 340 | 268 | - | - | - | - | - | - | ||||||
