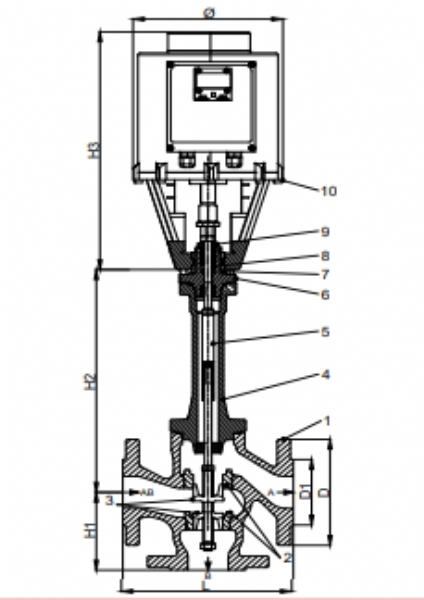

| 1 | GÖVDE / BODY | EN-GJL-250, EN-GJS-400-18-LT, 1.0619, 1.4408 |
| 2 | SİT / SEAT | 1.4006, 1.4305, 1.4404 |
| 3 | KLAPE / PLUG | METAL-METAL (1.4305, 1.4404) |
| 4 | İZOLE PARÇASI | EN-GJS-400-18-LT, 1.0619, 1.4408 |
| 5 | MİL / SHAFT | 1.4404 |
| 6 | ÜST FLANŞ / TOP FLANGE | EN-GJS-400-18-LT, 1.0619, 1.4408 |
| 7 | ÜST FLANŞ BİLEZİĞİ ./ UPPER FLANGE RING | S235JR |
| 8 | CONTA / GASKET | PTFE |
| 9 | KILAVUZ KOVANI / GUIDE GLAND | 1.4104 |
| 10 | MOTOR / MOTOR | ALÜMİNYUM / ALUMINIUM |
| TEKNİK BİLGİLER / TECHNICAL INFORMATION | ELEKTRİK AKTUATÖR TEKNİK BİLGİLER / ELECTRIC ACTUATOR TECHNICAL INFORMATION | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ÖLÇÜ SIZE | PN | L mm | D mm | D1 mm | H1 mm | H2 mm | H3 mm | KVS | Ø mm | Kg | N | FEEDBACK | INPUT | ||
| DN15 | 16 | 130 | 95 | 45 | 70 | 319 | 372 | 4 | 205 | 19,22 | 24V DC | 1000 / 3000 / 5000 | + | 0-10 V/4-20 mA/Local | |
| DN20 | 16 | 150 | 105 | 58 | 80 | 319 | 372 | 6,3 | 205 | 20,65 | 24V AC | 1000 / 3000 / 5000 | + | 0-10 V/4-20 mA/Local | |
| DN25 | 16 | 160 | 115 | 68 | 85 | 319 | 372 | 10 | 205 | 21,40 | 220V AC | 1000 / 3000 / 5000 | + | 0-10 V/4-20 mA/Local | |
| DN32 | 16 | 180 | 140 | 78 | 100 | 346,5 | 372 | 16 | 205 | 31,10 | |||||
| DN40 | 16 | 200 | 150 | 88 | 105 | 346,5 | 372 | 25 | 205 | 32,30 | |||||
| DN50 | 16 | 230 | 165 | 102 | 120 | 346,5 | 372 | 40 | 205 | 35,70 | |||||
| DN65 | 16 | 290 | 185 | 122 | 130 | 363 | 372 | 63 | 205 | 40,35 | |||||
| DN80 | 16 | 310 | 200 | 138 | 140 | 363 | 372 | 80 | 205 | 46,00 | |||||
| DN100 | 16 | 350 | 220 | 158 | 150 | 455 | 415 | 160 | 205 | 78,30 | |||||
| DN125 | - | - | - | - | - | - | - | - | - | - | |||||
| DN150 | - | - | - | - | - | - | - | - | - | - | |||||
| DN200 | - | - | - | - | - | - | - | - | - | - | |||||
